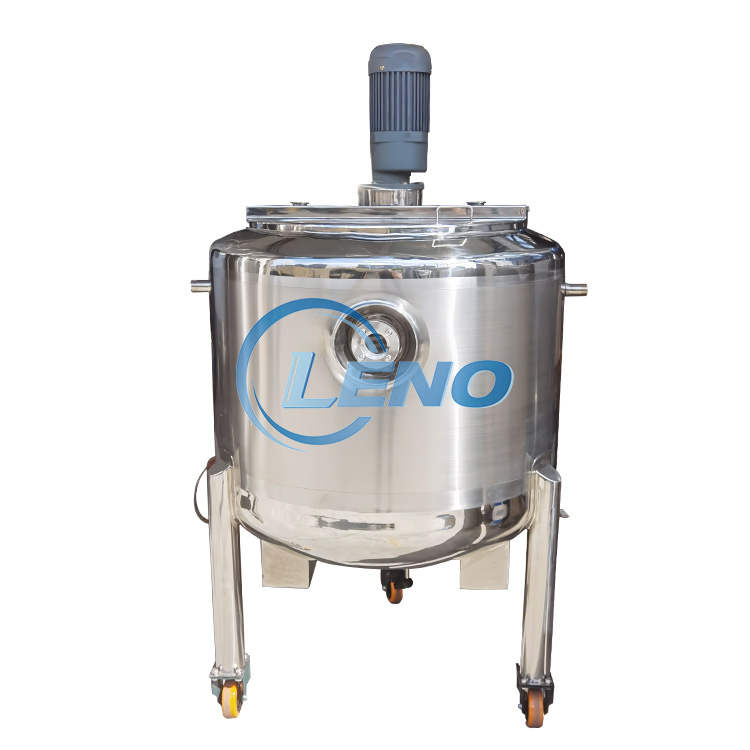

Here is the comprehensive information about the 500L Mobile Electric Heating Jacketed Tank, compiled based on market supply and technical specifications:
1. Product Overview.
The 500L Mobile Electric Heating Jacketed Tank is a stainless steel vessel with a heating jacket, suitable for industries such as chemicals, food, and pharmaceuticals. It is used for mixing, heating, and storing liquids or pastes. Key features include:
Heating Method: Electric or steam heating, with a jacket design ensuring even heat distribution.
Material: Made of 304/316L stainless steel, meeting food-grade or chemical corrosion resistance standards.
Mobility: Some models come with wheels or handles for easy short-distance movement.

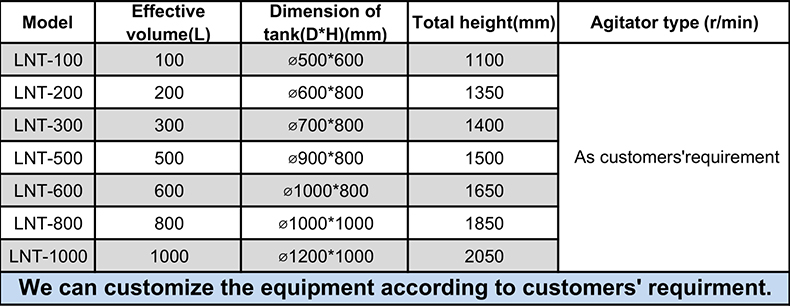

2. Technical Specifications.
Capacity: 500L (effective volume), total volume ~560L.
Design Pressure: Jacket working pressure 0.25 MPa, max 0.3 MPa.
Temperature Range: Electric heating with ±0.5°C precision, max 320°C.
Structure: Three-layer design (inner tank + jacket + insulation layer), available in tilting or fixed versions.
3.Typical Applications.
Food Processing: Dairy, juice blending, edible oil heating.
Chemical/Pharmaceutical: Resin, glue, and pharmaceutical liquid mixing.
Laboratory Use: Small-batch material testing or pilot production.
.
