Disperser Description
A high-shear emulsifying machine is a precision device that achieves liquid-liquid emulsification or liquid-solid dispersion through the high-speed shearing action of a rotor and stator. It supports operation under atmospheric pressure, vacuum, and positive pressure conditions. Typical applications include cosmetic creams, pharmaceutical emulsions, and nanomaterial dispersion.
Product Classification and Technical Features.
By Structure Type to choose
Fixed: Includes an emulsifying pot and heating/vacuum system, suitable for GMP-compliant production (e.g., 316L stainless steel pot).

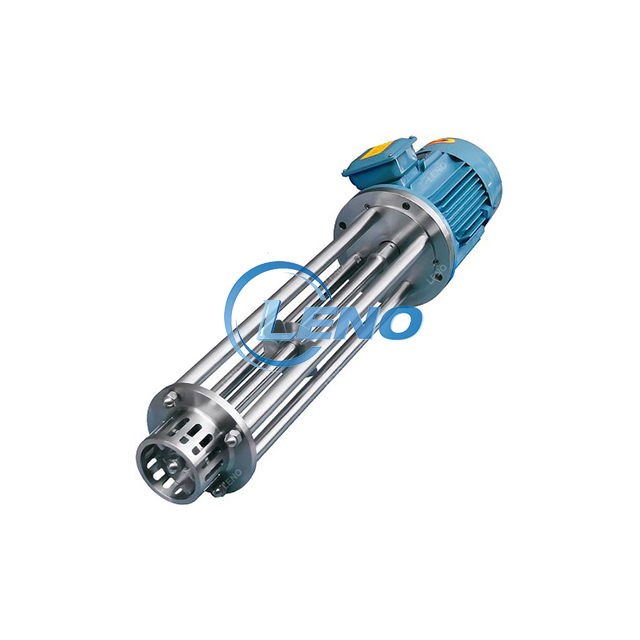

Mobile: Designed with a frame and removable stirring head, suitable for quick switching between round-hole and long-hole stator heads.
Inline: Designed for continuous processing (e.g., the FDC1 inline model).
high shear mixer Options
1:Voltage supply 3phase380V/50hz or 60hz,3Phase 220V/60HZ, 480V/60HZ etc.
2:2pole motor, Speed control from 0 to 3400Rpm.
3:Material can be used for SS316 ,SS304.Coating PTFE.
4:Motor can be Atex motor, inverter Motor, Standard motor.
