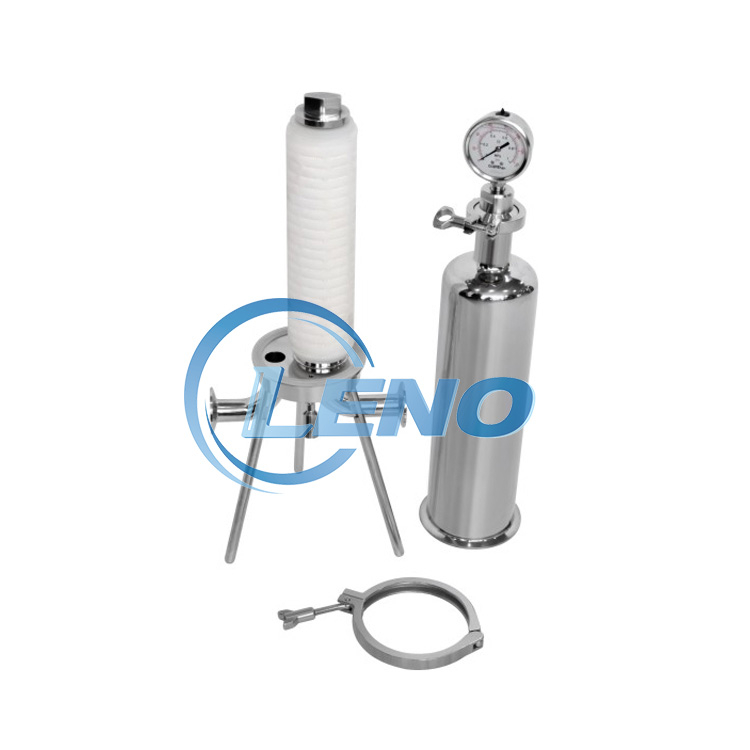

Single cartridge filter housings are designed to hold one filter cartridge. Different flow rates can be achieved depending on the length of the filter cartridge.
There are two types of pressure gauges: ordinary pressure gauges and diaphragm pressure gauges.
A hygienic butterfly valve could also be installed at the inlet and outlet. There is also an option for a sight glass on top of the filter housing.
Filter housings are typically used in small beer or wineries with small batch filtration volumes. Filter cartridges of different microns can be used to achieve filtration accuracy. A saintary Tri clamp inlet and outlet design is used on the housing, which is made of 304 or 316L stainless steel.
Throughout and outside, the surface is mirror polished to Ra<0.4um. LENO's filter housing are compatible with Pall. Millipore. 3M. Sartorius's cartridges. filter length including 10 inch 20 inch 30 inch to 40 inch. 226 code7 to 222 socket.

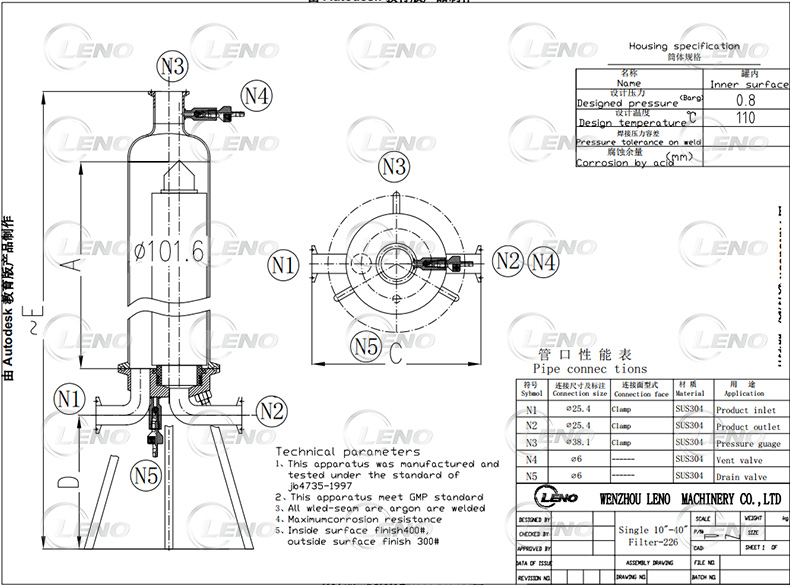

Single cartridge filter housing size from 5inch to 40inch
Material:316L stainless steel / 304 stianless steel
Design Pressure:1.0 Mpa(145PSI) / Customized
Surface Finish:Mirror polish Ra<0.4um / Electric Polished
Cartridge Socket :226 code 7 / 222;DOE;etc
In&outlet Conect:Tri clamp Union;Thread;Flange
In&outlet Size:1inch
Vent and Drain:M10 Hosebarb valve / 1/2"tri clamp
Seal Gasket :Silicone / Viton,PTFE,EPDM
