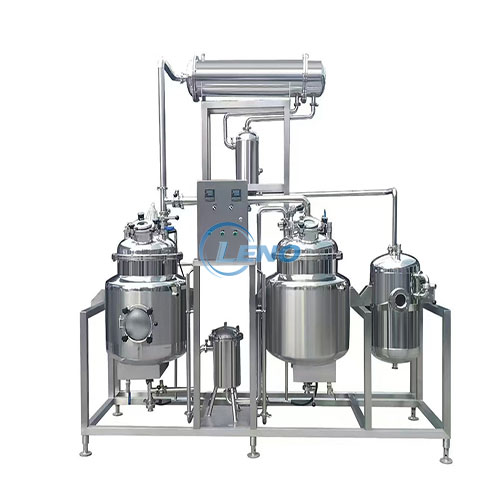

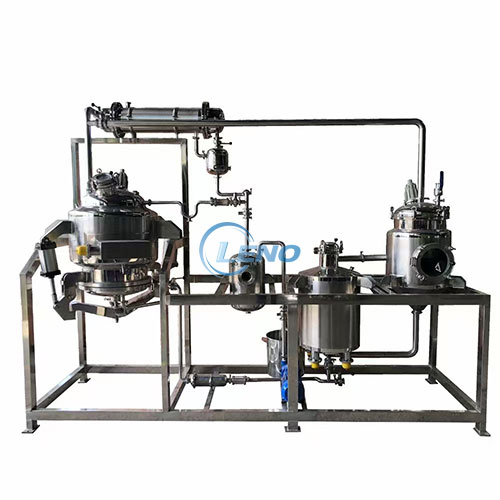

LENO TANK Multi-Function Extraction & Concentration Reactor | GMP-Compliant Design
Product Overview
The LENO TANK Extraction & Concentration Reactor is a versatile, industrial-grade system engineered for the efficient extraction and concentration of active compounds from a wide range of botanical and biological materials. Combining multiple extraction methods within a single, hygienic vessel, it is designed for demanding applications in pharmaceuticals, nutraceuticals, cosmetics, and food processing, ensuring compliance with Good Manufacturing Practice (GMP) standards.
Key Features & Specifications
| Feature Category | Description |
|---|---|
| Application & Versatility | Processes diverse raw materials: herbs, flowers, seeds, fruits, leaves, bones, etc. Supports multiple techniques: solvent extraction, hot water extraction, steam distillation, thermal reflux, and concentration. |
| Hygienic & Safe Construction | • Material: Made from AISI 304 / 316 / 316L stainless steel. • Design: Three-layer insulated structure for efficiency and safety. Flange-closed system with a GMP-compliant design. • Safety: Explosion-proof (Ex-Proof) configuration, CIP (Clean-in-Place) system, and pneumatic discharge gate. |
| Process Control & Monitoring | • Equipped with temperature gauge, sight glass with light, and adjustable manhole. • Heating Options: Electric heating or steam jacket heating. • Agitation: Scraped-wall type agitator prevents material buildup and ensures uniform heat transfer. Speed adjustable (0-63 RPM). |
| Mobility & Ancillary Support | • Mounted on adjustable legs with universal wheels for easy relocation. • Complete System Includes: Defoamer, condenser, cooler, oil-water separator, filter, control desk, vacuum pump (for concentration), and sanitary centrifugal pump. |
Technical Model Specifications
| Model | Useful Volume (L) | Diameter (mm) | Motor Power (kW) | Agitator Speed |
|---|---|---|---|---|
| LNT-100 | 200 | 800 | 0.75 | 0-63 RPM |
| LNT-200 | 300 | 900 | 1.1 | 0-63 RPM |
| LNT-300 | 400 | 900 | 1.1 | 0-63 RPM |
| LNT-500 | 500 | 1000 | 1.5 | 0-63 RPM |
| LNT-1000 | 1000 | 1200 | 3.0 | 0-63 RPM |
(All models feature a scraped-wall mixer and the core specifications listed above.)
Why Choose This System?
Unmatched Flexibility: A single vessel replaces multiple dedicated units, allowing you to switch between water, solvent, and steam extraction processes seamlessly.
Built for Integrity & Compliance: The GMP-oriented design, premium stainless steel construction, and full CIP capability ensure product purity, batch-to-batch consistency, and meet stringent regulatory audit trails.
Engineered for Efficiency: The scraped-wall agitator and three-layer design maximize heat transfer and prevent scorching. Integrated vacuum capability allows for efficient low-temperature concentration, preserving heat-sensitive compounds.
Ready-to-Operate Package: Supplied as a complete system with all necessary ancillaries (condenser, separator, pump, etc.), reducing sourcing complexity and accelerating project commissioning.
