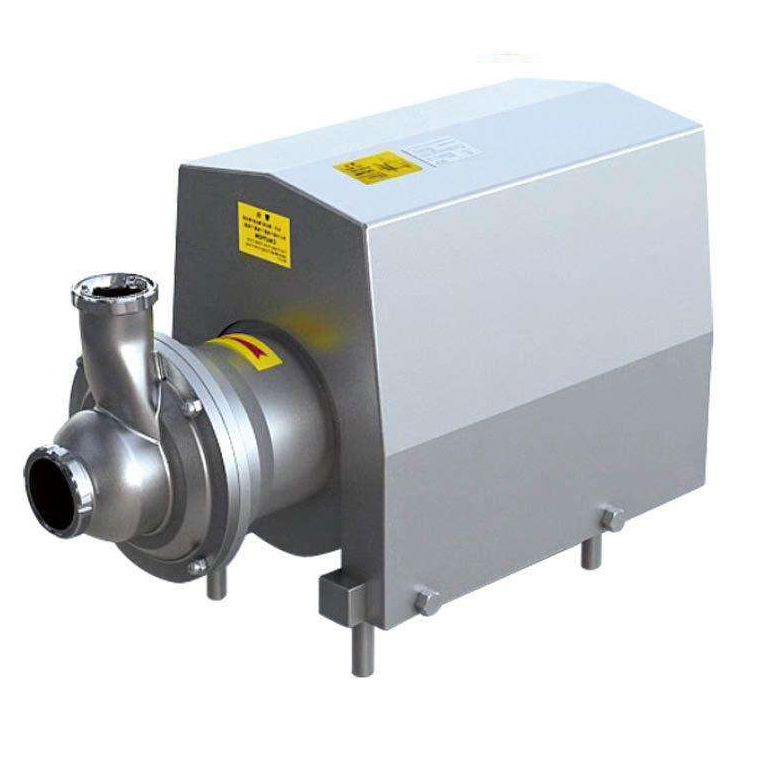

The CIP Self Priming Pump is a versatile and hygienic pump designed for applications that require frequent cleaning and sanitization, such as in the food, beverage, and pharmaceutical industries. This pump stands out for its ability to self-prime without the need for manual priming, even after long periods of downtime, making it ideal for systems where fluid levels may drop below the pump inlet. Combined with its compatibility with Clean-in-Place (CIP) and Sterilize-in-Place (SIP) systems, the pump ensures high levels of cleanliness and operational efficiency, reducing the risk of cross-contamination and minimizing maintenance efforts.
Self-Priming Capability: The pump can automatically prime itself from a dry state, with a priming height of up to 5 meters, eliminating the need for external priming devices and reducing operator intervention.
Hygienic Design: Constructed from 316L stainless steel with electropolished surfaces, the pump meets strict sanitary standards (FDA, 3A, EHEDG). The smooth internal finish prevents product buildup and facilitates thorough cleaning during CIP cycles.
Energy-Efficient Operation: The high-efficiency impeller and motor design ensure low power consumption while delivering consistent flow rates up to 200 m³/h and pressures up to 8 bar.
Corrosion Resistance: The stainless steel construction and optional exotic material seals make the pump suitable for transferring aggressive fluids, including acidic or alkaline cleaning solutions used in CIP processes.
Quiet and Reliable: The pump operates with minimal vibration and noise, thanks to its balanced impeller and robust casing, ensuring long-term reliability in continuous operation.
Dairy and Beverage Production: Used for transferring milk, juices, and soft drinks, as well as cleaning solutions during CIP cycles in bottling and pasteurization lines.
Pharmaceutical Manufacturing: Ideal for handling liquid medications, cleaning agents, and purified water in sterile processing environments.
Personal Care: Suitable for pumping lotions, creams, and other cosmetic products, with the added benefit of easy sanitization between batches.
Chemical Processing: Effective for transferring mild corrosive fluids and cleaning chemicals in industrial washing systems.
Q: How long does the self-priming process take?
A: The priming time depends on the suction lift and fluid properties, but it typically ranges from 10 to 30 seconds for standard applications.
Q: Can the pump be used with hot cleaning fluids?
A: Yes, the pump is designed to handle temperatures up to 150°C, making it compatible with hot water and steam used in SIP processes.
Q: What is the minimum fluid level required for self-priming?
A: The pump can prime from a completely dry state, as long as the suction line is properly sealed and the lift does not exceed the maximum priming height.
Q: Are there different seal options available?
A: Yes, we offer mechanical seals made from silicon carbide, tungsten carbide, or EPDM/NBR elastomers to suit different fluid compatibility requirements.
CIP self-priming pump can be used with wine, oil, syrups, volatile products such as alcohol, acetone and other solvents,or with products at temperatures close to boiling point. However, the main use of this pump is for CIP return.
Pump Body Material:SS304/SS316L
Seal Material:EPDM (Standard, FDA approval) FPM(Viton) and PTFE

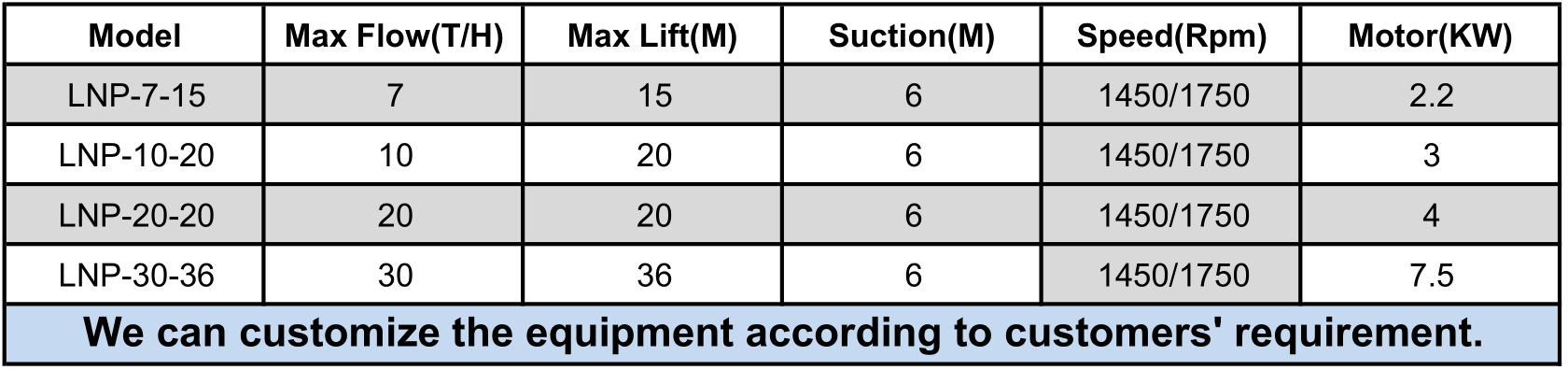

Max. Flow:30m3/h / 132 GPM
Max. Speed:1750rpms/min
Max. Suction height:6m
Max. Head:30 H(M)
Max. Working Pressure:3Bar/ 43 PSI
Max. Working Temperature:120°C

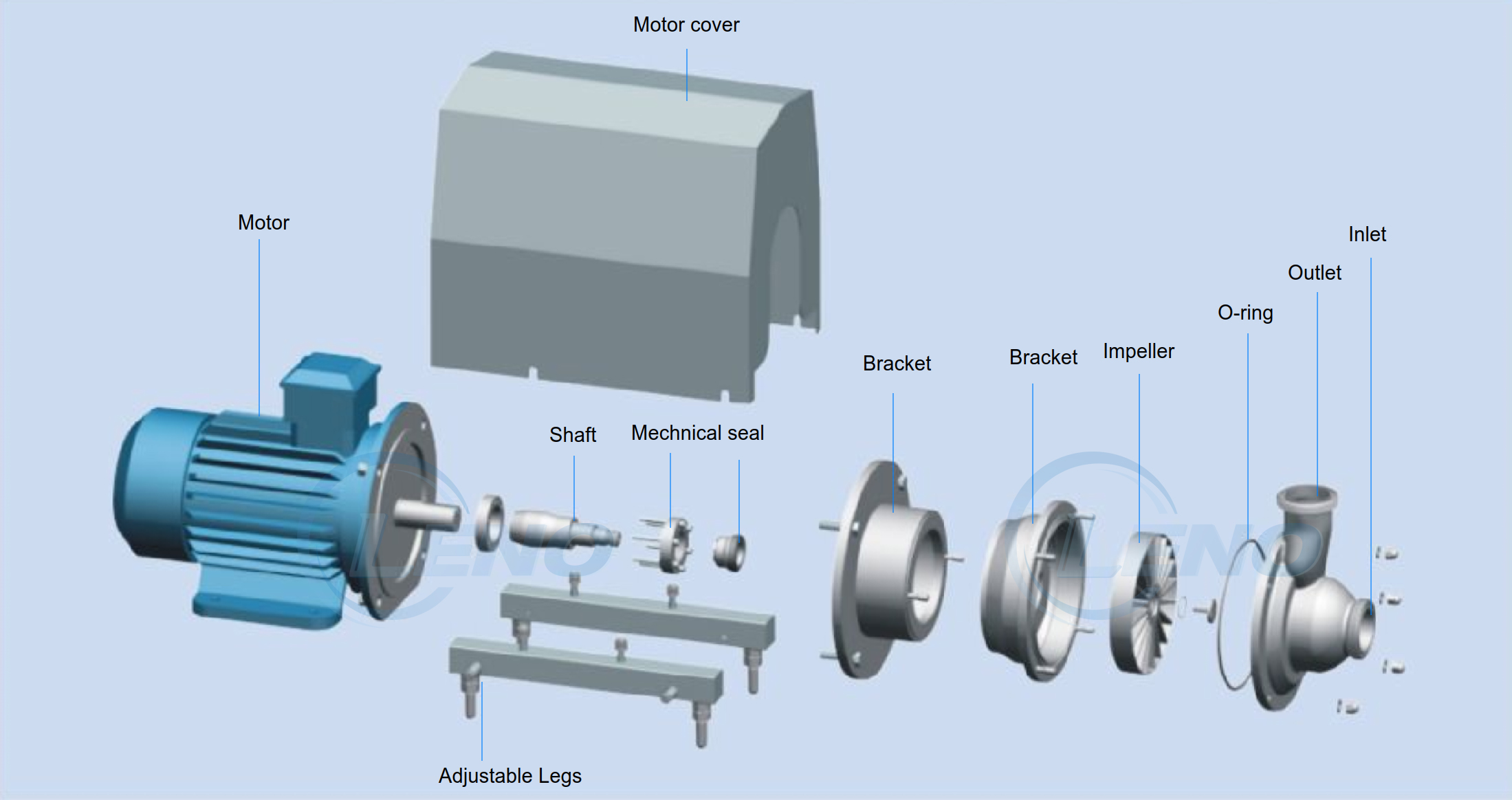

Mechanical seal:SIC/SIC/EPDM(Standard), C/SIC/EPDM
Motor power:1.1kw, 1.5kw, 2.2kw
Voltage:110V, 220V, 380V
Motor:ABB
Surface treatment Inner polished and Sandblast outside
Availably connection:Tri-Clamp, Thread, Flange
