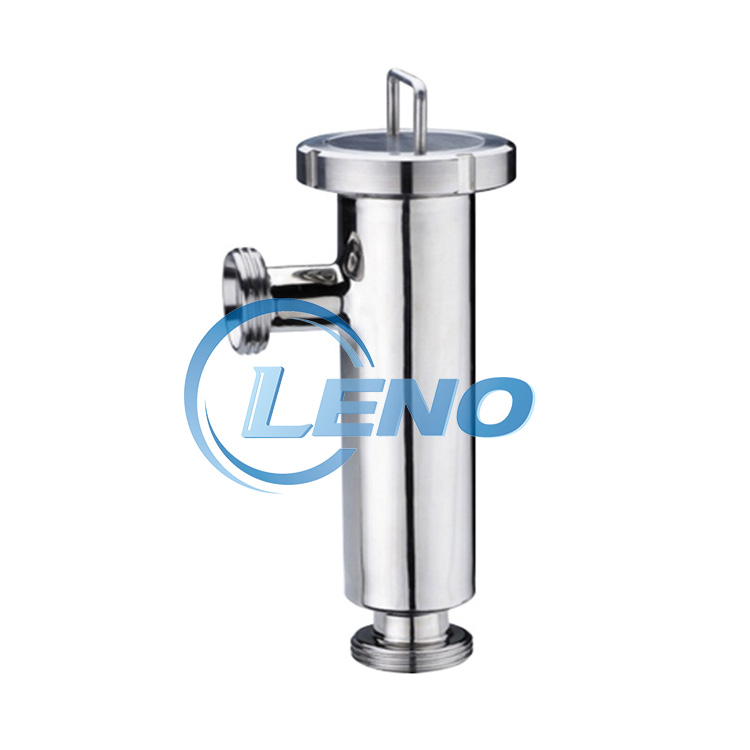

The Inline Filter Housing is a compact and high-performance filtration solution designed for seamless integration into pipeline systems to remove contaminants from liquid and gas streams. Engineered for precision, this housing ensures continuous and reliable filtration in industrial processes, maintaining fluid purity while minimizing pressure drop. Constructed from durable materials such as stainless steel, carbon steel, or exotic alloys, it withstands harsh environments, corrosive fluids, and high-pressure applications. The inline design allows for easy installation in both horizontal and vertical pipelines, making it ideal for industries requiring efficient particulate removal without disrupting workflow. Whether used for pre-filtration, final polishing, or protective filtration, the housing accommodates various filter elements like bags, cartridges, or strainers, offering versatility for diverse process requirements.
Sleek Inline Design: The straight-through flow path reduces turbulence and pressure loss, enabling high-flow rates with minimal energy consumption. The compact footprint fits into tight spaces, making it suitable for retrofitting existing systems.
Material Versatility: Available in 304/316L stainless steel (FDA-compliant for food applications), carbon steel with anti-corrosive coatings, or specialty alloys (Hastelloy, Monel) for aggressive chemicals, ensuring compatibility with diverse media.
Quick-Change Mechanism: A hinged cover or clamp-lock design allows fast filter element replacement, reducing downtime. Optional pressure gauges or differential pressure sensors monitor filter life and contamination levels in real time.
High Filtration Efficiency: Capable of removing particles as small as 1 micron (depending on the filter element), it meets strict purity standards for applications ranging from water treatment to chemical processing.
Pressure Resistance: Rated for working pressures up to 100 bar (1450 PSI) in high-pressure models, with ASME B16.5 flanged connections or threaded ends for secure pipe integration.
Water and Wastewater Treatment: Removes sediment, rust, and organic matter in municipal water supplies or industrial recirculation systems.
Chemical Processing: Filters polymers, solvents, and adhesives to prevent equipment damage and ensure product consistency.
Food and Beverage: Cleans dairy products, juices, and edible oils, meeting strict hygiene standards with polished internal surfaces.
Petroleum and Gas: Protects pumps, valves, and meters from abrasive particles in crude oil, lubricants, or natural gas streams.
Q: What filter elements are compatible with this housing?
A: It supports bag filters (1-200 micron), cartridge filters (0.1-100 micron), and wire mesh strainers (5-500 micron), with adapter kits available for different element sizes.
Q: Can it be used for gas filtration?
A: Yes, the housing is suitable for gaseous media, with optional venting ports to release trapped air during liquid filtration.
Q: What is the temperature range for the housing?
A: Standard models operate from -20°C to 150°C; high-temperature variants (up to 300°C) are available with heat-resistant seals and materials.
Q: Is there a bypass option for uninterrupted flow during filter change?
A: For critical processes, a duplex configuration (two parallel housings) can be installed to allow element replacement without shutting down the system.
