Production description:

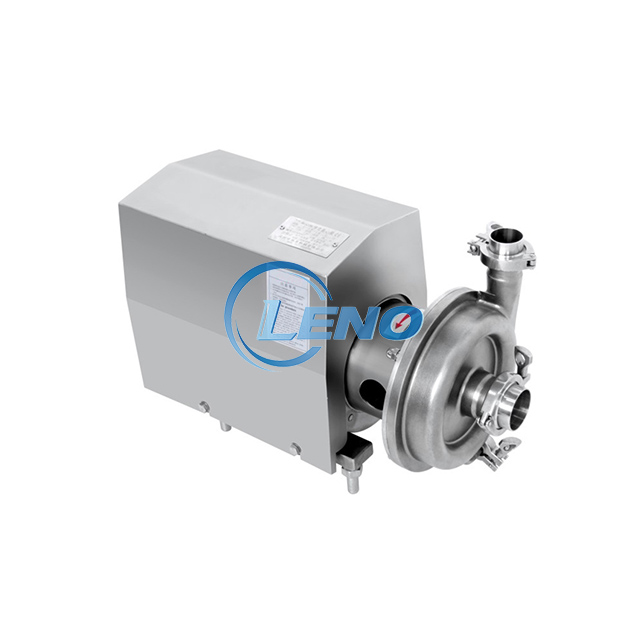

Stainless steel centrifugal Pump is a range of close-coupled centrifugal pumps with hygienic design, compact and highly efficient. It is made of a cold-formed stainless steel casing, impeller, mechanical seal, pump cover, lantern and shaft.
Pump options
Material:AISI304,AISI316
Flow:500Liter-80Ton/H
Lift:10M-80M
Connection type:Welded,Clamp,Union
Impeller type:Open,Closed type.
Pump cover:Square,Round type.
Pump head:Forged or Casting.
Mechanical seal type:Single mechanical seal ,Double Flushed mechanical seal.
Sealing:EPDM,PTFE.
Motor Brand:ABB,Siemens,Chinese motor.
Motor type:Ex-Proof,Normal,Inveter
Voltage:220V 380V 440V 660V
Motor Power:0.37Kw-22Kw.
Speed:2900RPM,3400RPM.

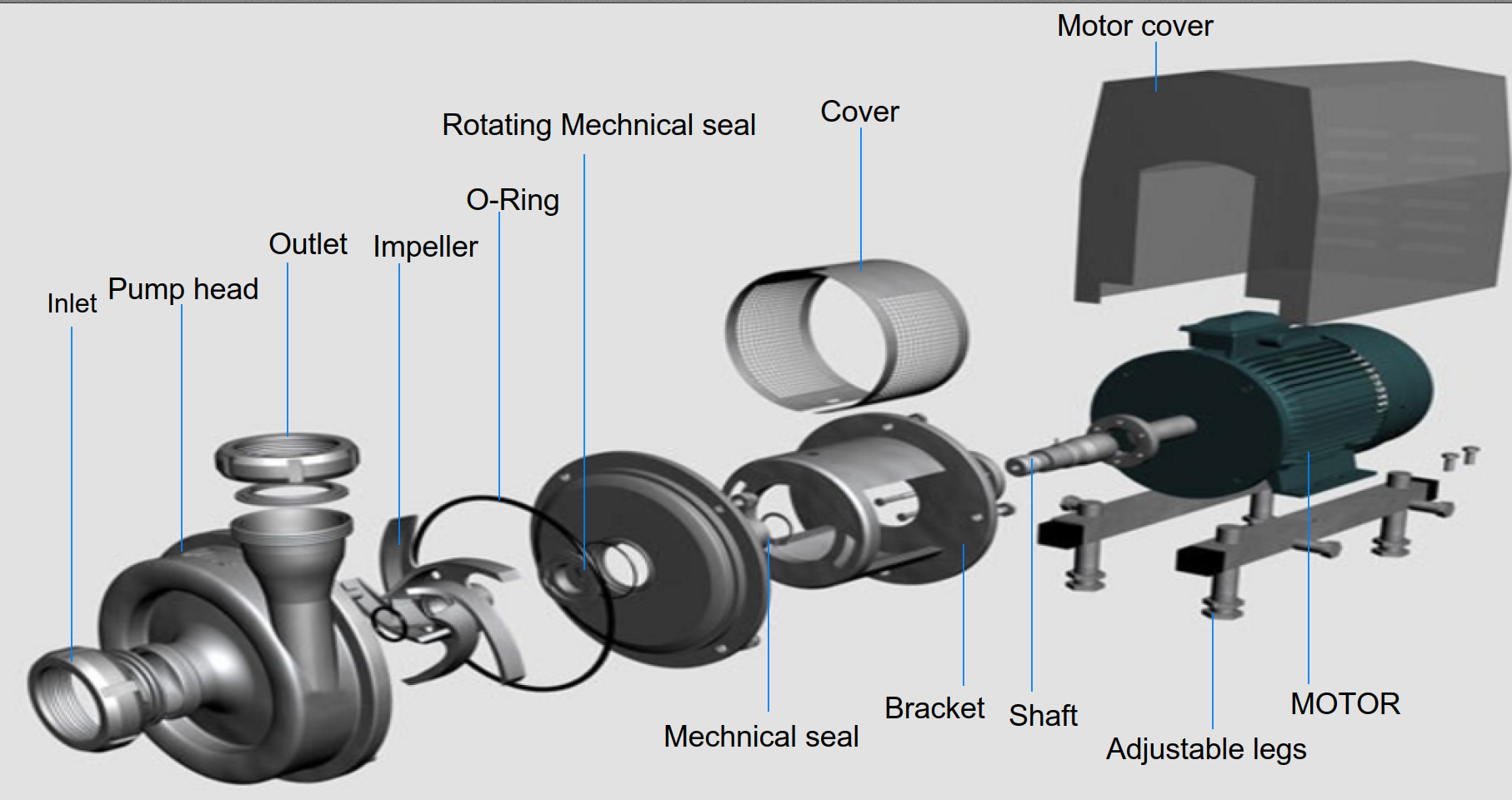

Decomposition of centrifugal pump:
Sanitary centrifuagl Pump sheet :
FAQ LENO Sanitary centrifugal pump
1:What are the key technical specifications?
Flow Rate: 3–40 m³/h
Head: 18–36 m
Operating Temperature: -10°C to 140°C (with EPDM seals)
Material: SUS304/SUS316L stainless steel, polished contact surfaces.
2:What are the structural features?
Open Impeller: Minimizes dead zones for easy cleaning.
Flushable Mechanical Seal: Supports CIP (Clean-in-Place) cleaning.
Motor Configuration: ABB-brand three-phase motor, IP55 protection, explosion-proof options available.
3:How to install and maintain it correctly?
Installation: Position the pump below the liquid level to avoid self-priming issues.
Maintenance:Regularly inspect mechanical seals.
Perform CIP cleaning or disassemble for manual cleaning.
Ensure proper lubrication of bearings to extend service life.
4:Common issues and solutions?
Reduced Flow: Check for impeller clogging or wear.
Abnormal Noise: Inspect bearings or motor for damage.
Leakage: Check if seals are worn or improperly installed.
5:How to choose the right sanitary centrifugal pump?
Based on Media Properties: Corrosiveness, viscosity, particle size.
Based on Process Requirements: Flow rate, head, temperature range.
Based on Hygiene Standards: Food-grade or pharmaceutical-grade materials (316L stainless steel).
