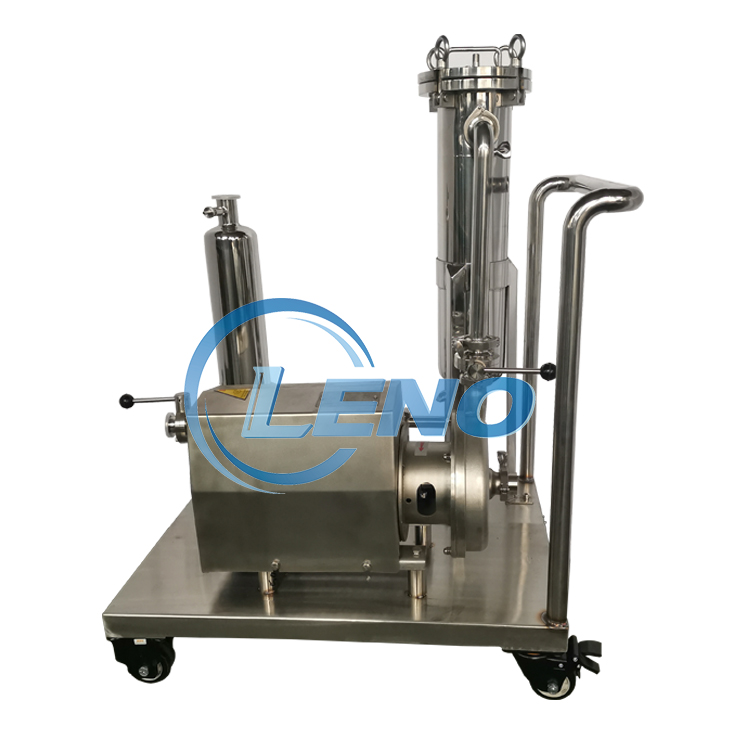

The Filter Housing Skip with Centrifugal Pump is an integrated solution combining a robust centrifugal pump with a high-capacity filter housing, designed for applications requiring both fluid transfer and contaminant removal. This compact unit eliminates the need for separate pump and filtration systems, streamlining processes and reducing installation costs. The pump provides the necessary pressure to drive fluids through the filter housing, while the housing retains particulates, ensuring clean output for downstream equipment or processes. Ideal for industries where space is limited or mobile filtration is needed, the skip-mounted design allows easy relocation and quick setup.
Integrated Pump and Filter: The centrifugal pump (available in stainless steel, cast iron, or non-metallic materials) is directly coupled to the filter housing, creating a single, efficient unit. The pump's flow rate and head are matched to the filter's capacity for optimal performance.
High-Capacity Filtration: The housing accommodates large filter bags or multiple cartridges, offering high dirt-holding capacity and extended service intervals. A transparent lid or sight glass allows visual monitoring of filter contamination.
Mobility and Flexibility: Mounted on a skid with forklift pockets or wheels, the unit can be easily moved between production lines or sites. It supports both batch and continuous filtration processes.
Energy-Efficient Pump: The pump's impeller design ensures low power consumption while delivering consistent flow rates up to 200 m³/h and heads up to 80 meters, suitable for viscous or low-viscosity fluids.
Easy Maintenance: The filter housing features a quick-release closure for fast element replacement, while the pump's mechanical seal and bearings are designed for long life with minimal lubrication.
Industrial Cleaning: Filters wastewater from parts washing, removing oils, chips, and debris before recycling or discharge.
Paints and Coatings: Cleans raw materials and finished products, ensuring particle-free coatings for automotive or industrial applications.
Mining and Construction: Processes slurry, wastewater, and coolant fluids, removing abrasive solids to protect pumps and nozzles.
Food Processing: Filters syrups, sauces, and edible oils in mobile processing units or temporary production setups.
Q: What is the maximum viscosity the pump can handle?
A: The centrifugal pump is optimized for viscosities up to 500 cP; for higher viscosities, a positive displacement pump variant is available.
Q: Can the filter housing be upgraded for higher flow rates?
A: Yes, the housing can be retrofitted with multi-bag or multi-cartridge modules, and the pump can be replaced with a higher-capacity model.
Q: Is the unit suitable for explosive environments?
A: Explosion-proof motors and static-dissipative materials are optional for hazardous area applications (ATEX/IECEx certified).
Q: How is the pump protected against dry running?
A: An optional dry-run sensor or pressure switch can be integrated to shut down the pump if fluid levels drop below safe operating levels.
