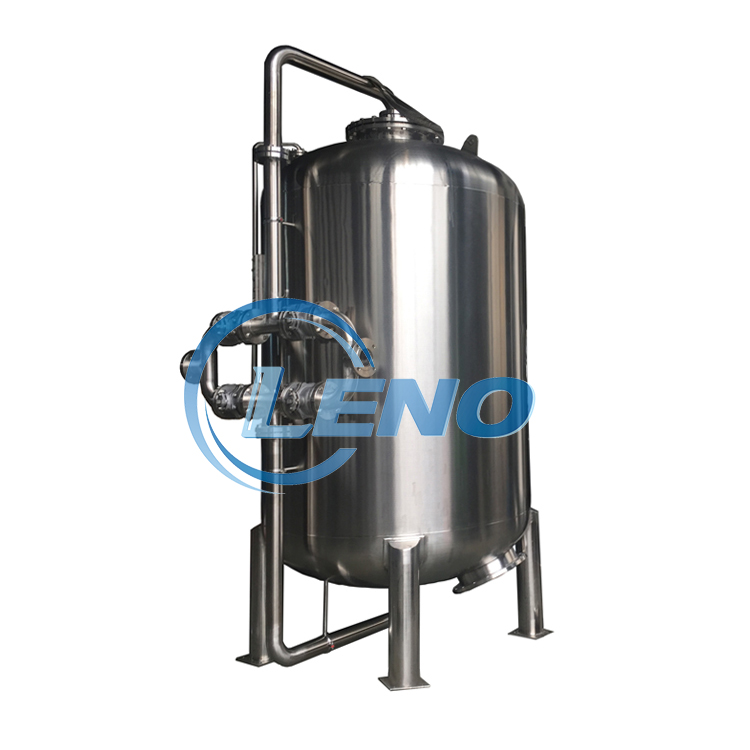

The Activated Carbon Vessels like a sand filter are used as a basic sediment filter, removing large particles from water such as dirt, sand, mud, rust and other large sediments, however the granulated Activated Carbon also absorbs chlorine and organic molecules from the water, making it smell and taste better.
Activated carbon consists of nutshell carbon, which is light weight, large pore size, strong abrasion resistance, and highly absorbent. The filling height is as follows:
Carbon activated material: 0.6-1.2mm, 1100mm, ---top layer
Material of quartz sand: 0.6-1.2mm 100mm, middle layer
Materials: quartz sand 1.2-2.0mm, 100mm, ----bottom layer
Industry, breweries, waterworks, and wastewater treatment all benefit from carbon filtration. Activated carbon filter vessels from Leno are made of stainless steel 304 or 316. Working pressures range from 4 to 6 bar.
Filtering with activated carbon features
The tank is made from stainless steel and rubber-lined steel.
It is possible to polish the surface matt, acid wash it, or polish it mirror
10 bar g is the design pressure
Filtration with activated carbon
In addition to removing organisms, colloidal silicon, and chlorine, it is also used as a mechanical filter. Heavy metal molecular molecules, odors, and colors are more readily absorbed by it.
A water-purifying carbon is used in mineral water, purified water, and beverage industries because it enhances the taste of pure water.
It can be used as a pretreatment system for RO systems, electrodialysis systems, and ion exchange systems. In addition to back flushing quickly, activated carbon filters can also be washed with NaOH and HCL when necessary. The product can also be washed by vapor blower if conditions permit, so please specify before ordering, so that we can design and manufacture it accordingly.
