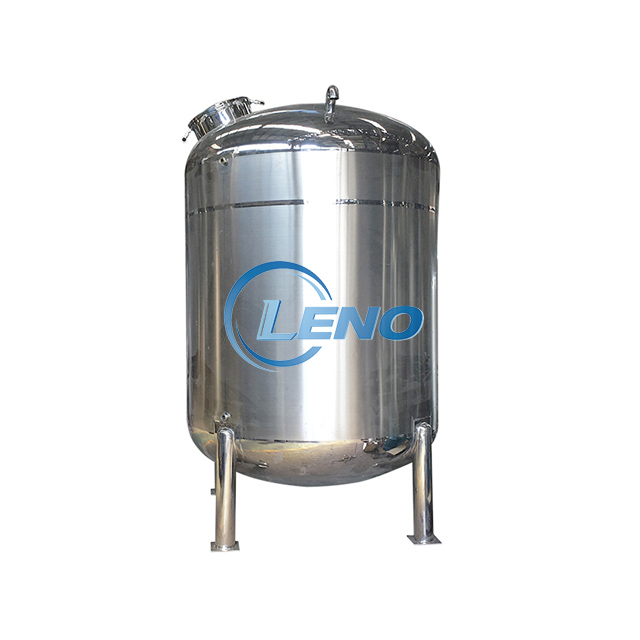

2000L Stainless Steel Storage Tank Specifications
Here are the detailed technical parameters and specifications for a 2000L stainless steel storage tank, based on industry standards and typical applications:
1. Basic Parameters
Capacity: 2000L (2 cubic meters), suitable for small to medium industrial or laboratory applications.
Material: 304 or 316 stainless steel (316L offers better corrosion resistance, ideal for chemical and food industries).
Dimensions:
Vertical: Height ~2000mm, diameter ~800mm (customizable).
Horizontal: Length ~1.2m, diameter ~1.2m (reference for 2-ton tanks).
Wall Thickness: Typically 2.0–6mm (adjustable based on pressure requirements).
2. Performance Parameters
Temperature Range: -20°C to 200°C (standard operating conditions).
Pressure Range:
Atmospheric Type: 0.1–0.6 MPa (standard design).
High-Pressure Type: Customizable (e.g., 10 Bar pressure tanks).
Sealing: Food-grade gaskets or mechanical seals for leak-proof performance.
3. Structure & Accessories
Standard Configuration:
Tank body, lid, support legs, inlet/outlet ports, vent.
Optional accessories: Agitator, heating jacket, insulation layer.
Safety Features:
Safety valve (annual calibration), pressure gauge (6-month calibration), level indicator.
Anti-static grounding (required for flammable liquids).
4. Surface Finish & Maintenance
Internal Polishing: Ra ≤ 0.4μm (food-grade requirement).
External Finish: Brushed or sandblasted, anti-fingerprint.
Maintenance Tips:
Regularly inspect welds, seals, and safety components.
Clean with neutral detergents; avoid strong acids/alkalis.
5. Typical Applications:
Food & Beverage: Wine, edible oil storage (requires 304 material + polished interior).
Chemical & Pharmaceutical: Storage of corrosive liquids (recommend 316L material).
Water Treatment: Sterile water tanks (requires contamination-resistant design).
.
