1000L Stainless Steel Electric Heating Jacketed Mixing Tank

1000L Stainless Steel Electric Heating Jacketed Mixing Tank

LENO electrical heating tank is a device used to heat and store water or other fluids for various purposes, such as domestic hot water supply, industrial processes, or space heating.

Quantity:
Availability:





Inquire Add to Basket

Product Description

a

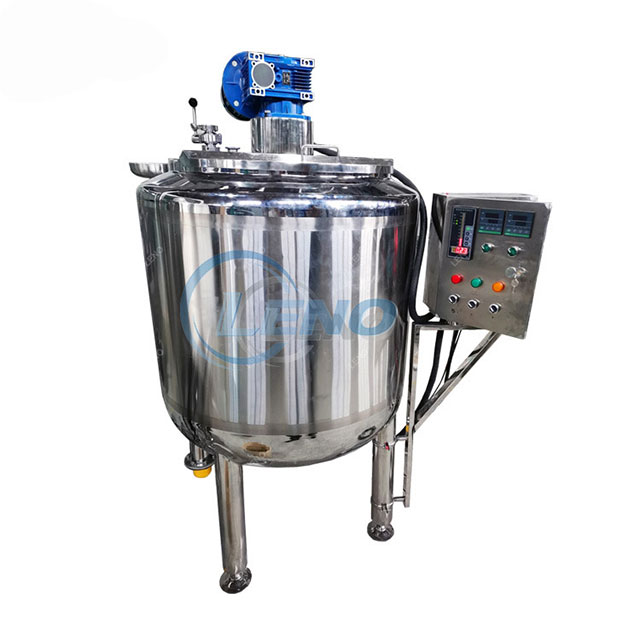

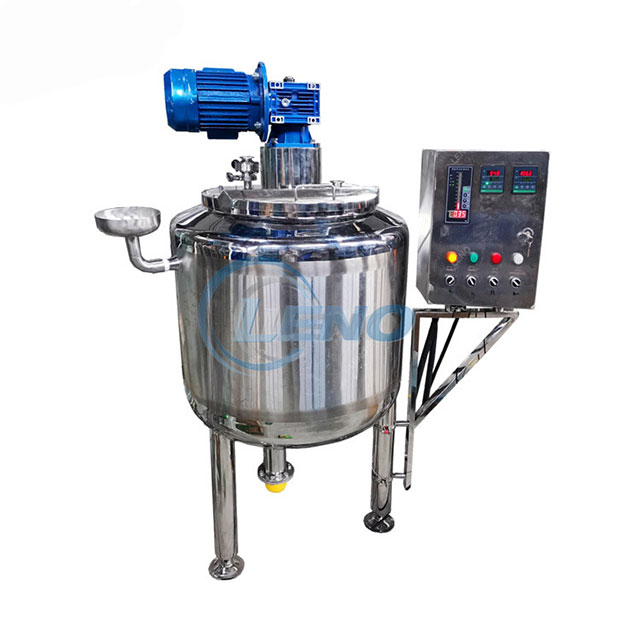

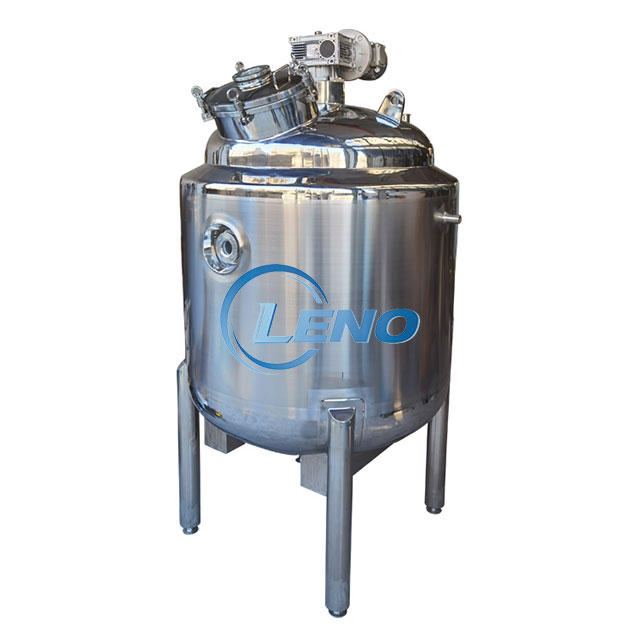

1000L Stainless Steel Electric Heating Jacketed Mixing Tank

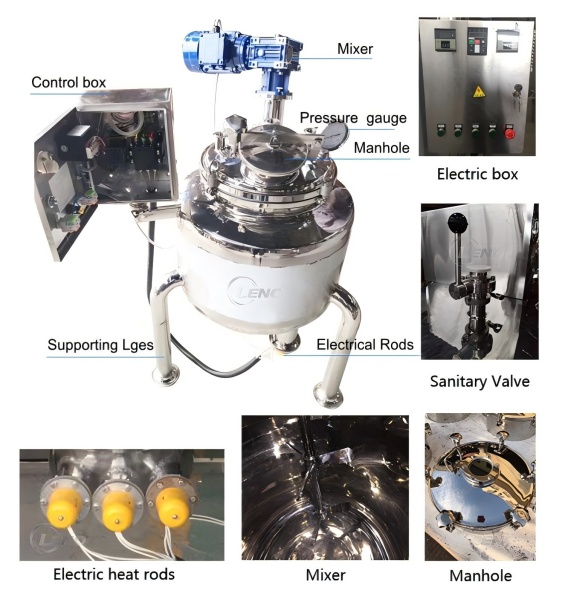

Leno electrically heated jacketed tanks are made of food-grade stainless steel and are heated electrically to heat the material inside the tank. The temperature, liquid and heating time can be controlled.

Mainly used for food & beverage also for pharamcy

Specification

Modell	Effective volume(L)	Dimension of tank(D*H)(mm)	Heating power(Kw)	Motor power (kw)	Blending speed(r/min)
LNT-100	100	Φ500*600	9	0.55	As customers'requirement
LNT-200	200	Φ600*700	12	0.75
LNT-300	300	Φ700*700	18	0.75
LNT-500	500	Φ800*900	24	1.1
LNT-1000	1000	Φ1000*1200	36	2.2
LNT-2000	2000	Φ1200*1500	64	4.0
We can customize the equipment according to customers' requirment.
