Stainless steel pressure vessel is usually called a reaction pot or a reaction pot, the heating principle is to put the reaction kettle into the boiler steam, the steam heat into the kettle, so that the heat of the material in the reactor steam heating reaction kettle, steam as heat source heat exchange. There are three kinds of steam heat exchange mode: jacket heat, coil heat, half coil heat exchanger. At present, the most popular advanced reaction kettle heat transfer technology is the technology of semi disc steam heat transfer, which overcomes the shortcomings of the traditional heat exchange technology, such as low thermal efficiency, large diameter of the kettle body, and reduce the thickness of the reaction kettle, save manufacturing costs

DESCRIPTION:

Specification: 30L~50000L

Material: SS316L or SS304

Surface finish: inside surface is Ra0.28~0.4μm by mechanical polish. (passivation or electropolish are optional). Outside surface is Ra0.6~0.8μm by satin finish.

Agitator: Top mechanical agitator (propeller, spiral and anchor or others)

Pressure: ATM or pressure vessel (-0.1~1Mpa)

Structure: Single layer vessel, vessel with jacket, vessel with jacket and insulation

Jacket type: dimple jacket, full jacket, or coil jacket

Insulation material: rock wool

Components: vent filter, temp. gauge, level gauge, manhole, sight glass with lamp and cleaning ball or according to client’s detail requirement.

Manufacture standard for pressure vessel: ASME, PED 97/23/EC, GB150-2011

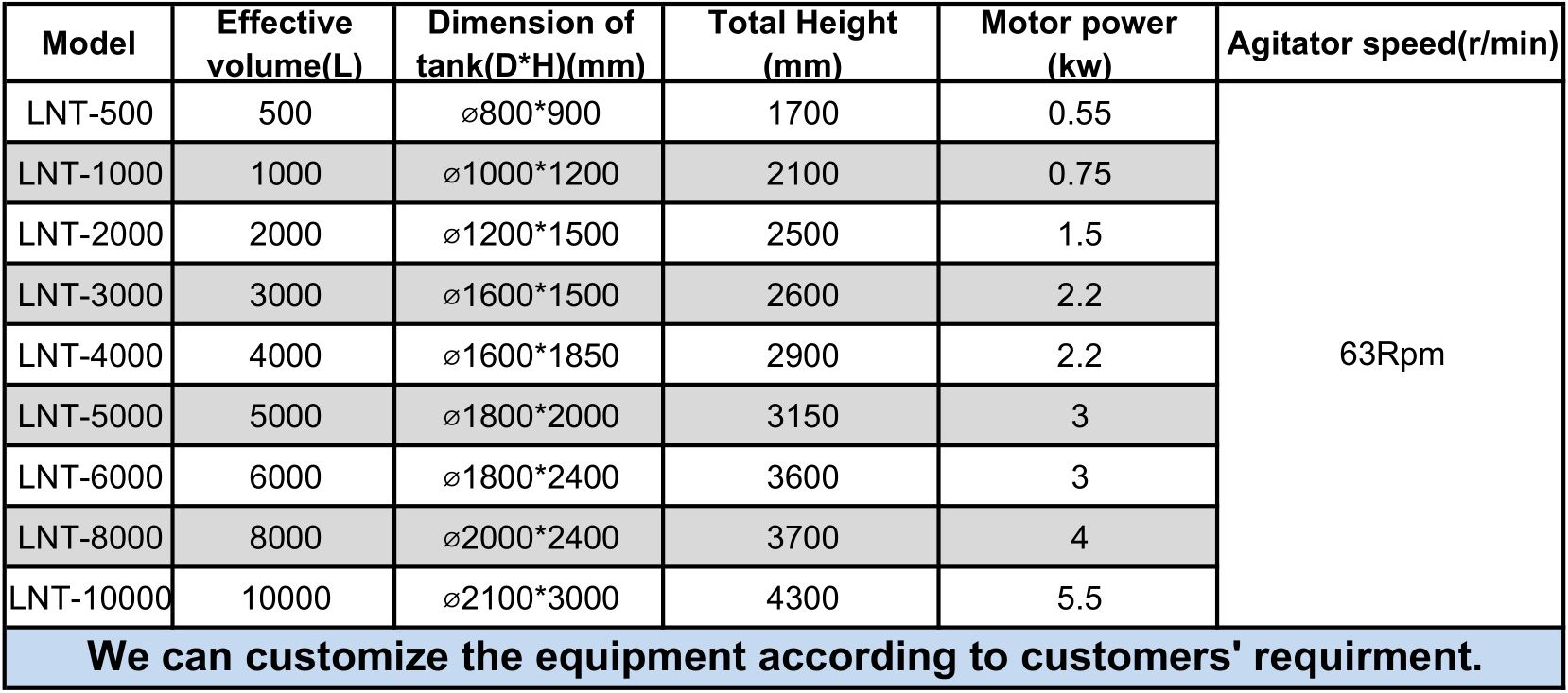

Configuration of Tank
