WENZHOU LENO MACHINERY CO.,LTD

Stainless steel pressure reactor are uses in chemical reactions including condensation, polymerization, esterification etherification, hydrolysis, hydration, reduction, oxidation, hydrogenation etc. at pressures (Upto 30 kg./cm2) and at temperatures ranging -20°C to +250°C. Reaction needing simultaneous fractional distillation and azeotropic distillation can also be conducted very efficiently using these chemical reaction vessels.

DESCRIPTION:

Description Designed according to 3A standard,widely used for transfer viscous media in food-processing,beverage,chemical,cosemtics and pharmaceutical industries

Construction Horizontal and vertical; Open lid, flat,disc,conical,shell cover;

Material SS304/SS316L/1.4301/1.4404

Seal Ring Fluorine Rubber,EPDM,PTFE,Silicone(Standard, FDA approval)

Mechnical Seal SIC,Hard alloy,graphite

Volume 50-50000L

Pressure 0-20 bar

Working temperature 300 C / 572 F

Jacket Coil,dimple jacket,hollow jacket

Cooling water,coolant, compressor

Heating electric(water,oil), steam

Agitator stirrer,high shear homogenizer,scrap mixer

Agitator Speed Constand speed and variable speed; Range: 0-4000rpm

Motor power 0.37kw-100kw

Voltage 110v/220v/240v/380v/415v/460v (50/60hz)

Motor SIEMENS,ABB,Domestic

Automitac PLC/HMI control,display,store,transfer

Surface treatment Inner and externel polished and brushed,good weldings and joints;

Accessories Customizable support

Availably connection Clamp, Thread, Butt weld, Flange

Availably standard DIN, SMS, 3A, RJT, ISO/IDF

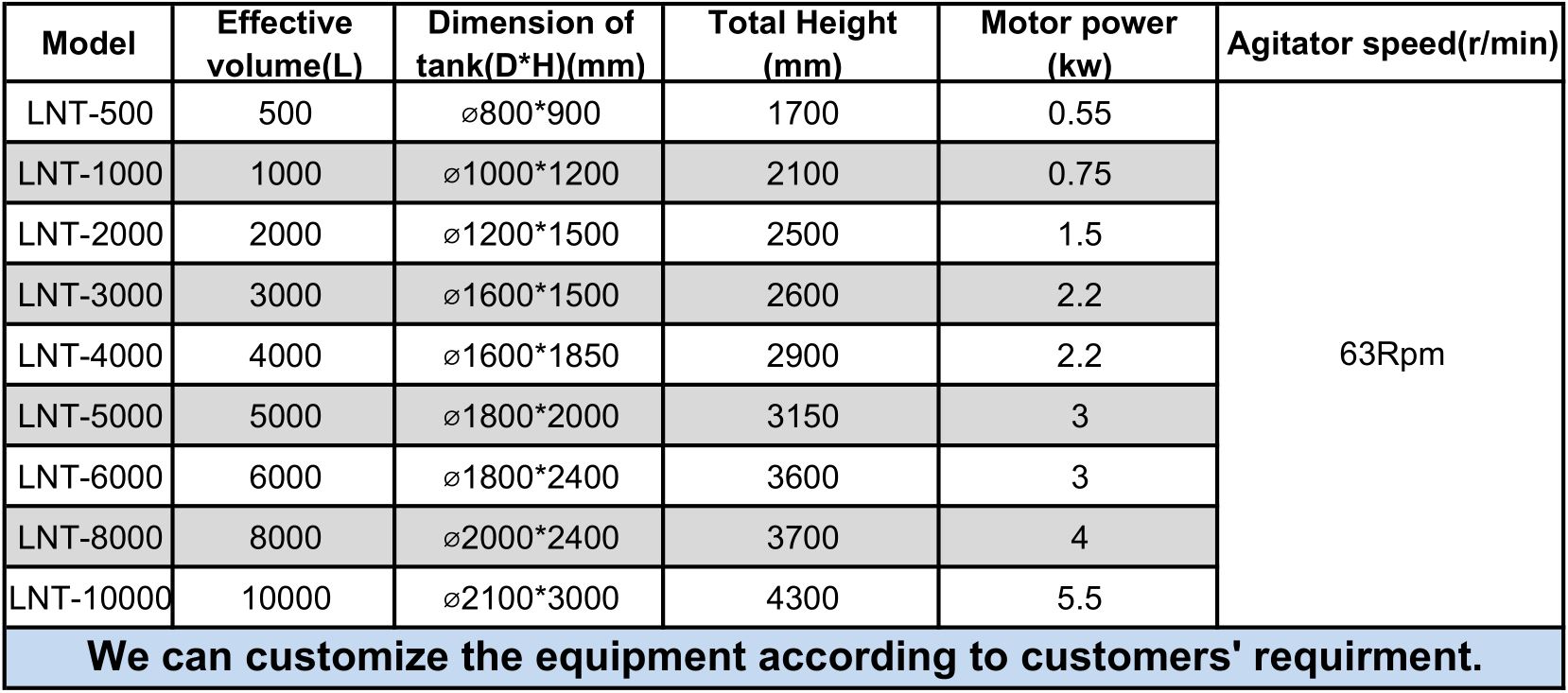

Configuration of Tank
