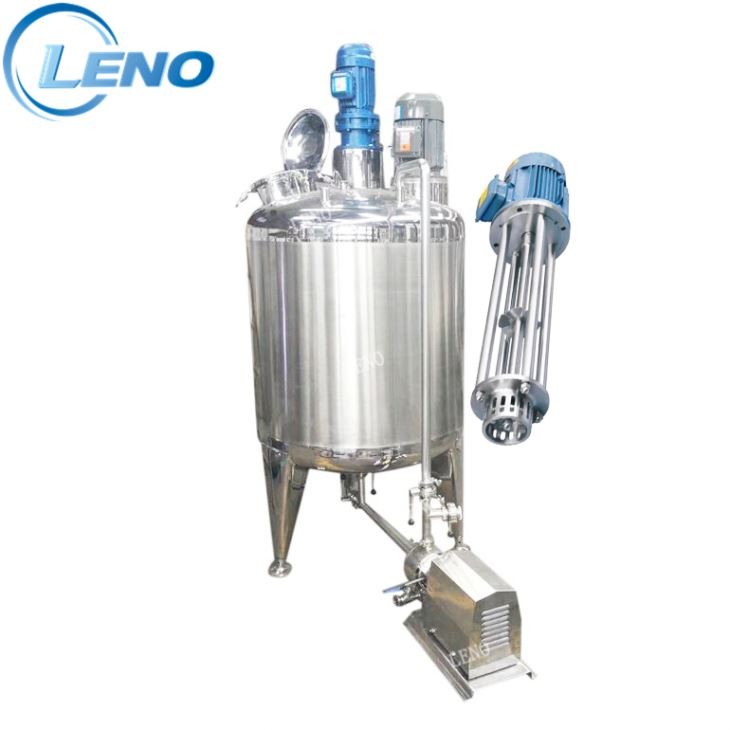

Stainless steel stirring tank is available for manufacturing liquid products(such as detergent,cosmetic,shampoo,shower gel,etc.) it integrates mixing,homogenizing,heating,cooling,pump discharge finished products and defoaming(optional) functions. It is the ideal equipment for liquid products in domestic and international factories.
1, Top mechancial agitator with propeller impeller, speed at fix 71rpm or adjustable 20-200rpm or special requirement. this kind of agitator is mixing syrup, injection, blood, oral liquid, culture media, etc.
2, Top mechanical agitator with anchor or frame impeller, speed is from 10-70rpm. it is mixing higher viscosity , such as sediment or viscosity oral liquid, etc.
3, Bottom emusification homogenizer, speed max 2900rpm for small vessel, 1480rpm for bigger tank. this kind of agitator is mixing most high viscosity , such as suspension, oil, fat emulsification , etc.

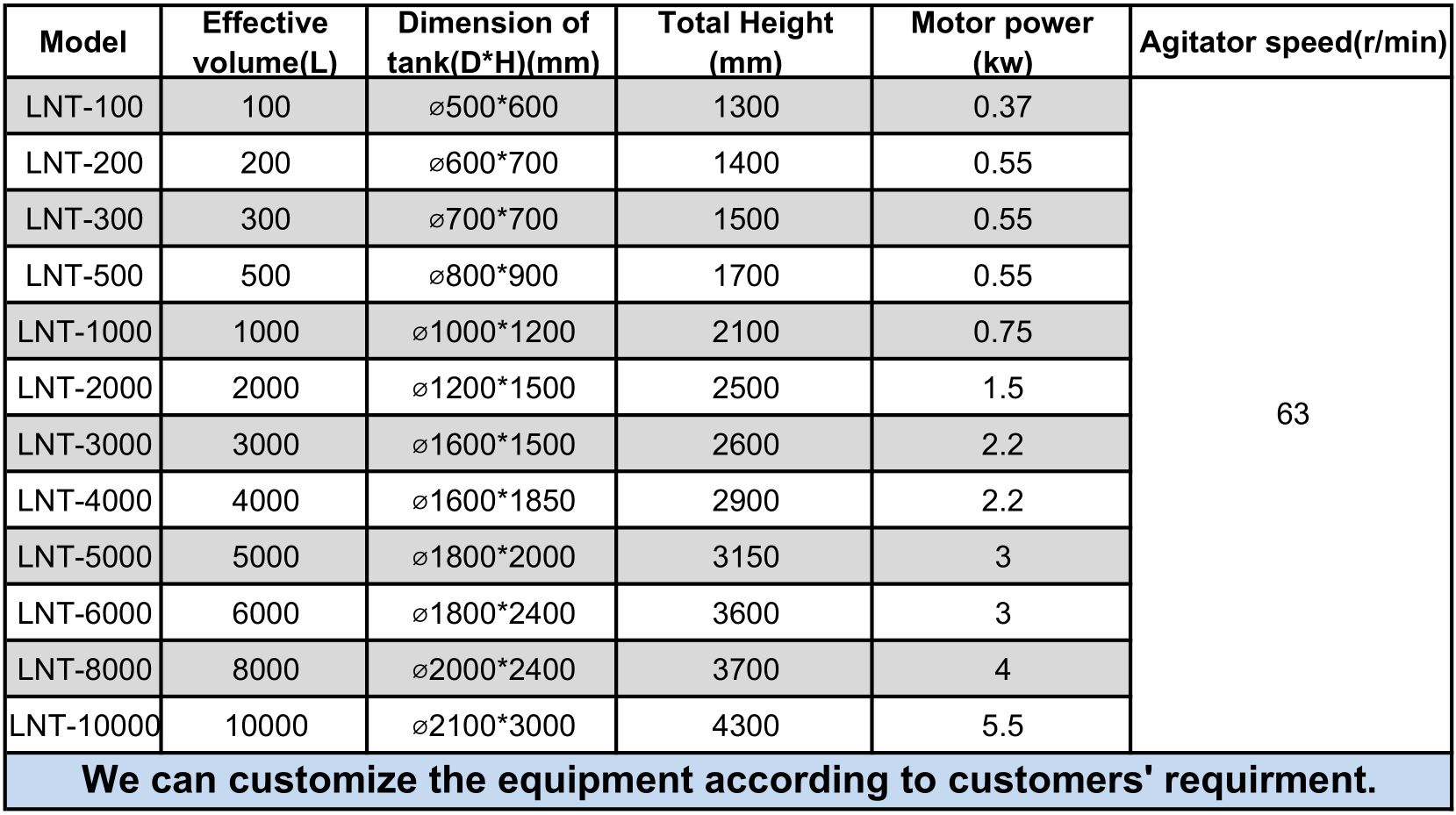

Configuration of Tank
Stainless steel SUS304 or 316L
0~3400RPM Mixer / agitator
Heating or cooling
Mixing tank or storage tank
Mixer /Manhole/ sanitary valve /CIP clean ball / adjust Legs
