WENZHOU LENO MACHINERY CO.,LTD

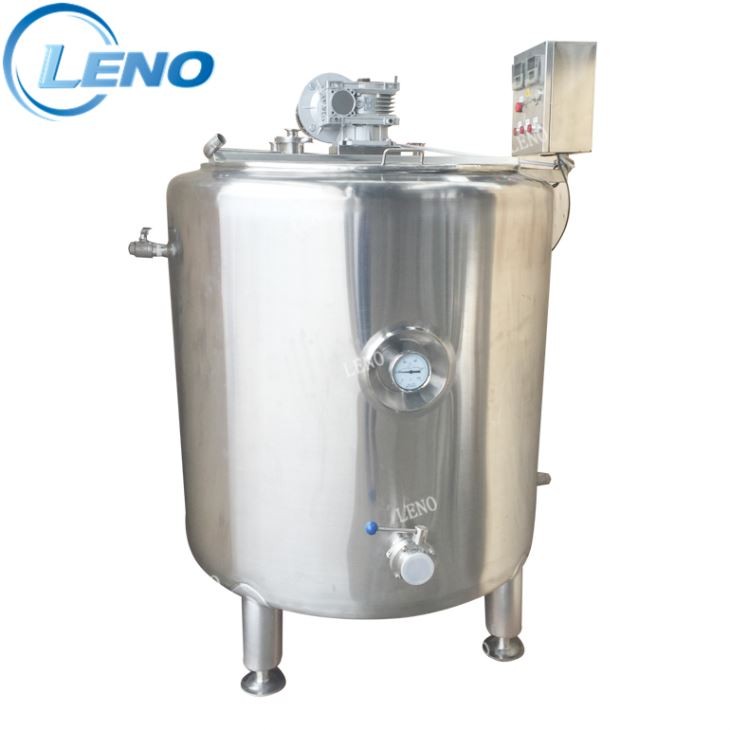

Wax Melting Tank

Wax melting tank is composed of three layers stainless steel plate, heat conduction layer and insulation layer plate (tank), containing wax oil switch and put the heat conduction oil mouth, can according to user requirements assembly 380 v or 220

APPLICATION:

Wax melting tank is composed of three layers stainless steel plate, heat conduction layer and insulation layer plate (tank), containing wax oil switch and put the heat conduction oil mouth, can according to user requirements assembly 380 v or 220 v electrical wires.



DESCRIPTION:

1:It's consists of three layer,contain inner stainless stell board,heat conducting layer and insulating course

2:It is equipped with wax oil releasing switch

3:Also it can matchi 380V or 220V,according to customer's requirement.

4:Heat pipe heating,change the solid wax into liquid wax before making the candle

5:There are temperature controller,indicator light,ac contactor and wax temperature sensor or temperature automation.Automatic control of temperature.

6:Easy operating

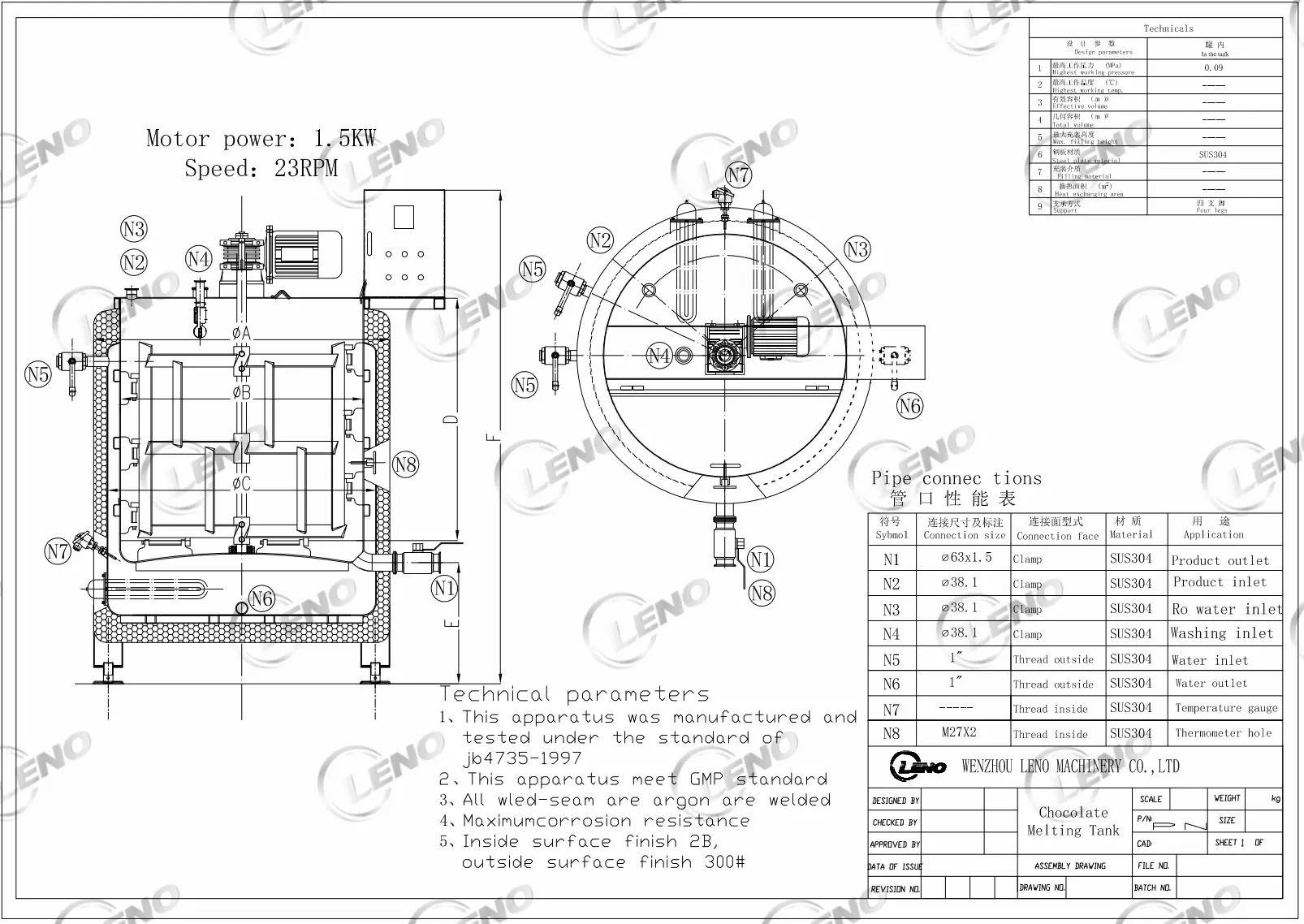

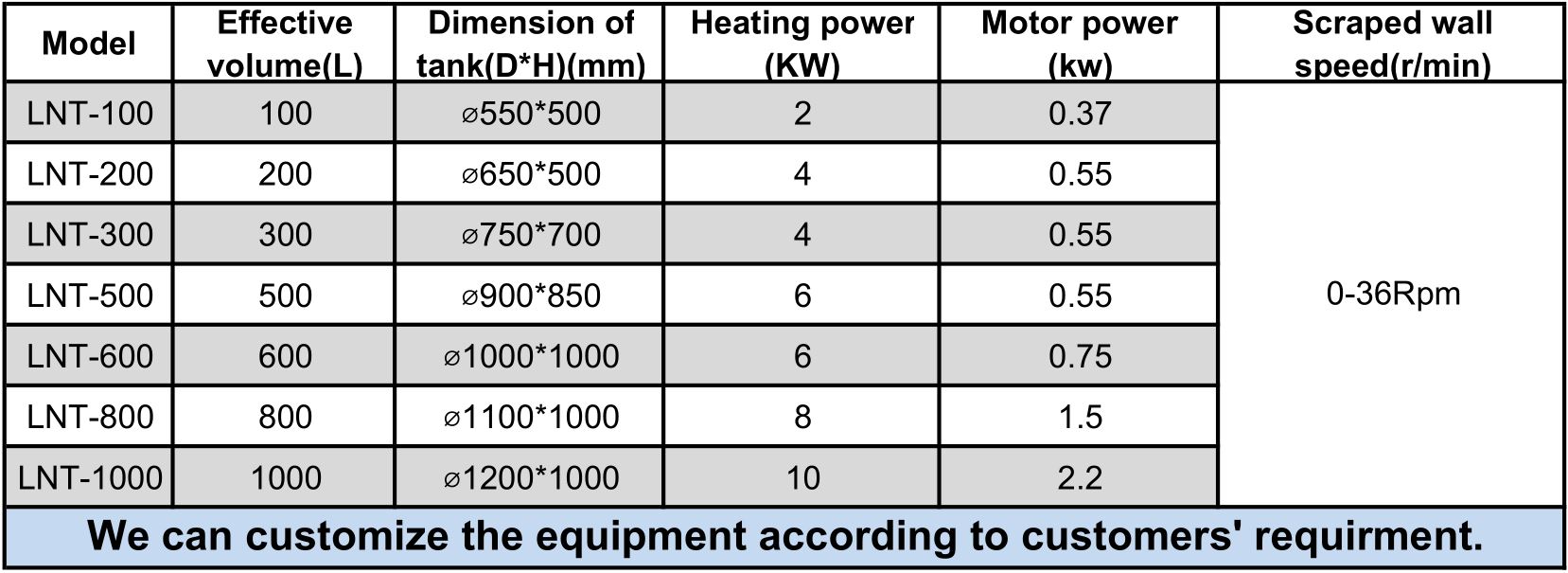

Configuration of Tank

Material :

Volume :

Mixer Type :

Jacket function :

function application :

Parts Details :

Stainless steel SUS304 or 316L

50~20000L customzied

0~3400RPM  Mixer / agitator

Heating or cooling

Mixing  tank or storage tank

Mixer /Manhole/ sanitary valve /CIP clean ball / adjust Legs /
