WENZHOU LENO MACHINERY CO.,LTD

Horizontal mixing tank produced by our company features logic design, advanced technology, automatic control and compliance with GMP. The tank body is of single or dual- layer structure, either vertical or horizontal. The filling of thermal insulation material is available in accordance with client's requirement. The inner surface is polished to Ra 0.45 um, and the outer layer uses mirror board or dull polished board for thermal insulation. On the top of tank, there are water inlet, reflux opening, sterilization opening, cleaning opening, manhole and 0.45um breathing apparatus.

DESCRIPTION:

1) Material:Stainless steel, austenitic stainless steel 304, 316L etc, with insulating material or not

2) Tank shell thickness:2mm at least (according to the design or your required)

3) Design work pressure (MPa):-0.1~~9.9MPa (According to the China national standard, breakthroughs in the foregoing measurements are allowed in special cases)

4) Design work temperature:-70~~+350C

5) General accessories(If required):Manhole, CIP, respirator, sight glass, mixing(Top side or bottom)

6) Service:We can provide you with a complete set of service from quota, design, manufacture and installation, according to your requirements we can design by your plan, or manufacture by your drawing, guarantees inner quality and safety, good looking appearance and function by introducing international advanced large-sized equipment of pulse plasma arc welder and auto polishing machinery and cooperating with international famous finished equipment making company.More detailed information will available on your requirement.

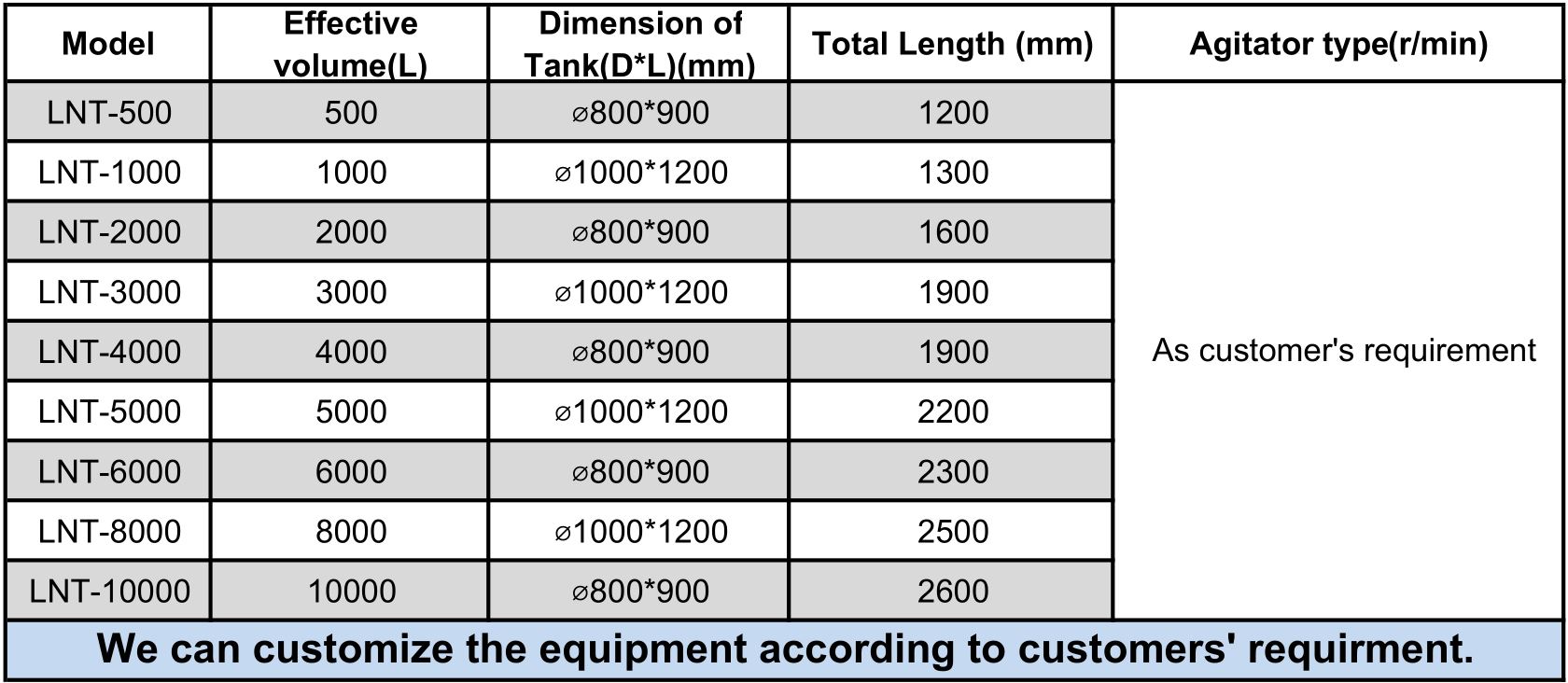

Configuration of Tank
