WENZHOU LENO MACHINERY CO.,LTD

Electrical heating mixing tank can be made into 3 layers, inner layer was the contact part with your raw material such as milk, juice or any other liquid product… outside the inner layer, there is a heating / cooling jacket for steam or hot water / cooling water. Then comes the outer shell. Between outer shell and the jacket, there is a 50mm thickness temperature preservation layer.

DESCRIPTION:

Electrical heating mixing tank is made according to the requirement of pharmacy and food industries to sanitation. The materials are made of imported high quality stainless steel (SUS 304 or SUS 316L).The tank inside adopts  mirror polishing. All the connectors  adopt round Corner transitional welding, which are free of dead corner and are easy to be cleaned.The heat preservation  adopts PU intergral foaming. Jacket , coil tube or honeycomb type jackets are available for selection according to customer requirement.

Accessories can be allocated according to requirements: CIP  clening vent ,aseptic spiracle,manhole, thermometer,sampling vent, material inlet and  spare vent etec

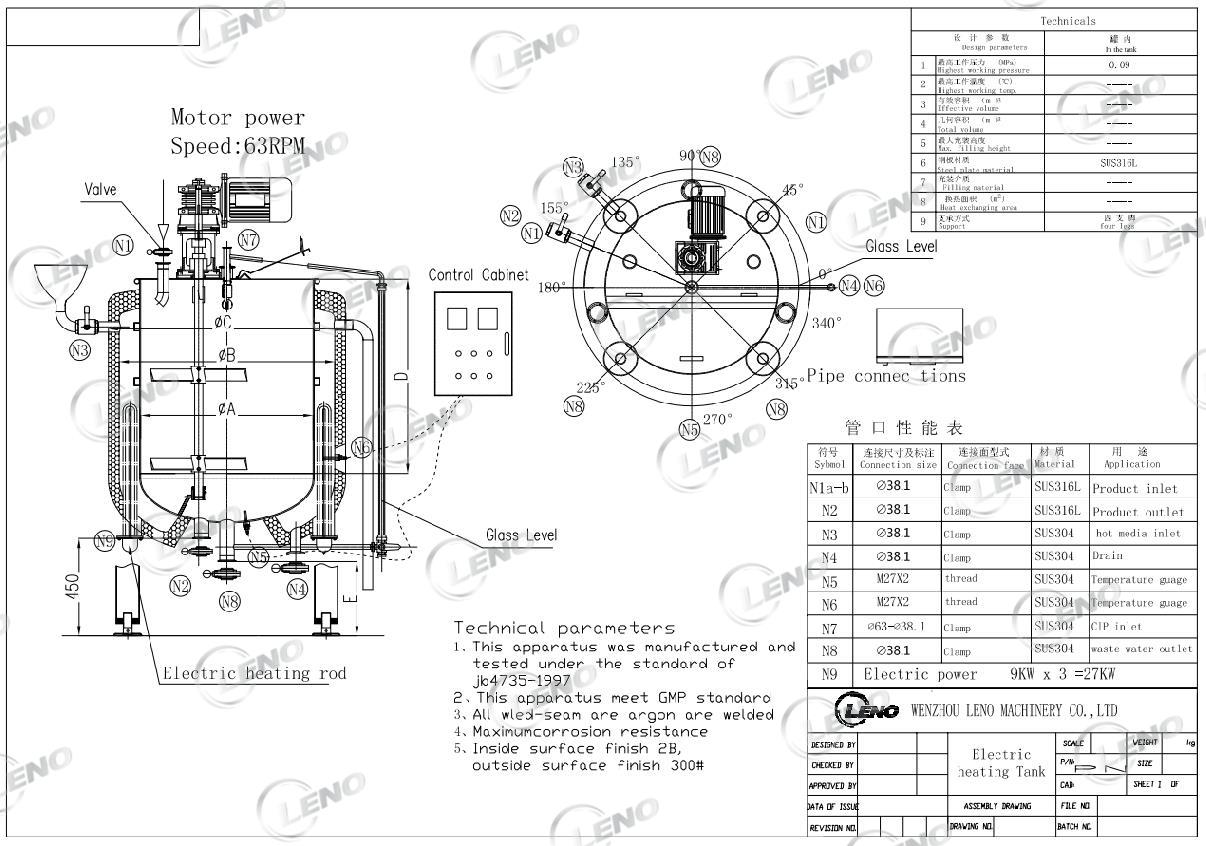

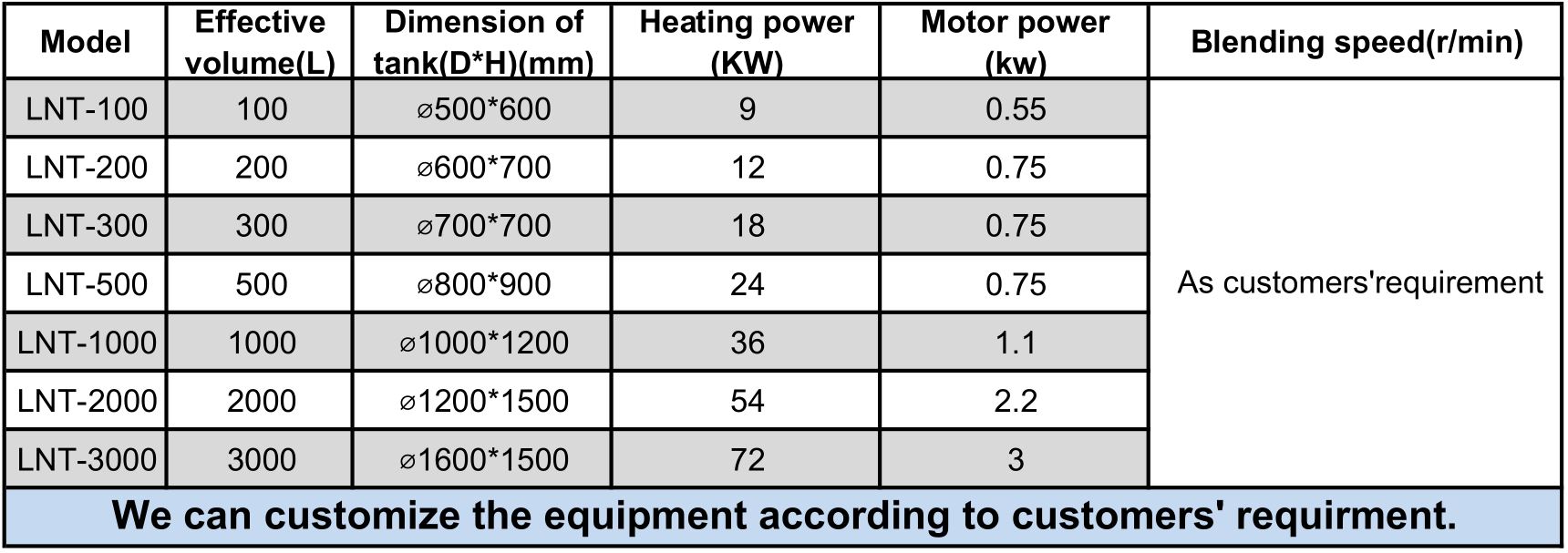

Configuration of Tank
